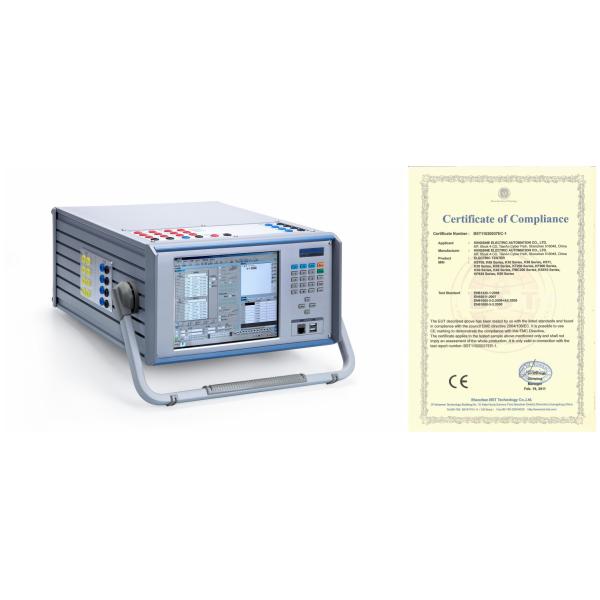

Lightweight Intelligent IEC61850 K2066i relay test set
Description Of Relay Testing Device Complied IEC61850
Universal protection relay test function, With fully function of Manual test, state sequencer,Harmonic,recloser test , Line differential, Distance, Mutation distance, Overcurrent, Zero sequencer, Ramping, Power direction, Differential rate, Differential Harmonic, Overexcitation protection, Synchronize, Reserve power supply test, Busbar differential, Frequency test, Dv/Df test, etc.
Feature Of Relay Testing Set Complied IEC61850
| ● |
Switch on to fault test(SOTF) |
| ● |
Power system model for dynamic testing |
| ● |
Online Vector display |
| ● |
Automatic test results assume |
| ● |
Automatic test report creation |
| ● |
Inbuilt GPS sync end-to-end testing |
| ● |
Anti-clipping detect, Wrong wiring connect alarm and self-protect, overload and overheat protection |
| ● |
3-Years guarantee of free repair and life-long maintenance |
| ● |
Lightweight, <20Kg |
| ● |
Free software upgrade |
Specification Of Relay Testing Kit Complied IEC61850
| Binary Input |
| Quantity |
8pairs |
| Type |
wet/dry, up to 300Vdc max input |
| Time resolution |
10us |
| Sampling Rate |
10KHz |
| Debounce time |
0~25ms (Software Controlled) |
| Time range |
Infinite |
| Time errors |
±1ms @ ≤1s, ±0.1% @ >1s |
| Galvanic isolation |
Isolated each pairs |
| Binary Output (Relay Type) |
| Quantity |
4pairs |
| Type |
Potential free relay contacts, software controlled |
| Break Capacity AC |
Vmax: 400Vac / Imax:8A / Pmax:2500VA |
| Break Capacity DC |
Vmax: 300Vdc / Imax:5A / Pmax:150W |
| Binary Output (Semiconductor Type) |
| Quantity |
4pairs |
| Type: |
Open-collector, Combination type male |
| Break Capacity DC |
5~15Vdc / 5mA, 10mA max |
| Response time: |
100us |
| Synchronization |
| Synchronization Mode |
GPS, SMA type antenna connector |
| Power supply & Environment |
| Nominal Input Voltage |
110V/220/230V ac, Appointed |
| Permissible Input Voltage |
85~264Vac, 125~350VDC, auto-protective |
| Nominal Frequency |
50/60Hz |
| Permissible Frequency |
45Hz~65Hz |
| Power Consumption |
1500 VA max |
| Connection Type |
Standard AC socket 60320 |
| Operating Temperature |
-10℃~55℃ |
| Storage Temperature |
-20℃~70℃ |
| Humidity |
<95%RH, non-condensing |
| Others |
| PC Connection |
RJ45 Ethernet, 10/100M |
| USB port |
2 USB type-A ports for external Keyboard, mouse or Data transport |
| Grounding Terminal |
4mm banana socket |
| Weight |
20 Kg |
| Dimensions(W x D x H) |
480×320×160(mm) |
Advantage Of Relay Testing System Complied IEC61850
Powerful 6-phase relay test set and commissioning tool, convenient for field test;
6x35A & 7x310V high accuracy analog channels output;
9.7” True color TFT LCD, touch screen and keyboard operating, w/wo laptop control;
The ever-expanding test library templates;
FAQ
Q: Can the device test the function of Synchronising or synchronism-check relays?
A: Yes.
Q: How about the guarantee of repair?
A: All of our products have 3-years guarantee of free repair, and life-long maintenance.
Q: What is your technical advantages?
A: 13 Channels (6x35A & 7x310V) outputs, Each output channels are independent and simultaneous control of magnitude, Phase angle and frequency values, able to inject DC, AC sine wave and up to 60x harmonics.
